Description
FEATURES
- BURSTING PRESSURE 100 BAR
- LCD DISPLAY
- FLOW-RATE INDICATION
- EASY TO CALIBRATE
- UL VERSION AVAILABLE

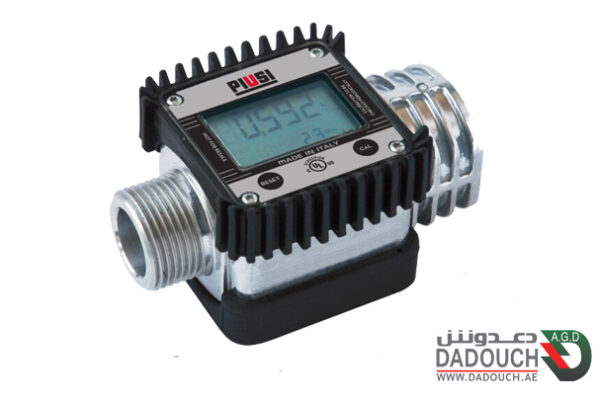

- K24 ATEX/IECExPIUSI K24 ATEX/IECEx is the new flow meter for non-commercial use, for measuring the dispensed quantity of Gasoline, kerosene and diesel.
ATEX/IECEx QUALITY
The digital flow meter for Gasoline, kerosene and diesel meets the ATEX/IECEx requirementsf or the use of materials in potentially explosive atmospheres.
K24 ATEX/IECEx has a sturdy aluminum body and a sealed electronic board, making it suitable for use in any working condition.
Easy to install, in line or at the end of the dispensing pipe, it has a display that can be applied in various positions to facilitate reading.
It is the ideal tool for managing the fluid dispensed.
MAIN FEATURES
- K24 ATEX/IECEx also includes these characteristics:
- Pulse signal type: single-channel, reed
- switch. Electronic board with LCD display:
- Partial 5 digits from 0.1 to 99999, Total 6 digits 1 to 999999
- Re-settable total available.
- Flow rate indication.
- Repeatability 0.3%.
- Pressure drop < 0.03 bar at 120 l/min
- Can be calibrated.
