Description
FEATURES
- ADJUSTABLE FLANGES
- SUITABLE FOR INDUSTRIAL APPLICATIONS
- IDEAL FOR MOBILE INSTALLATIONS
- LOW ENERGY CONSUMPTION

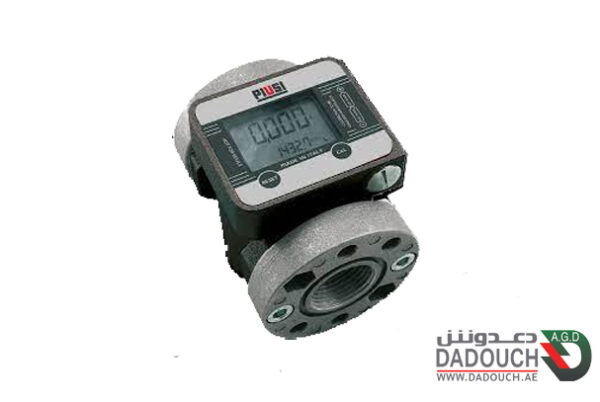

K600/3 is an electronic gear flow meter indicated for the control of the dispensing of fuels and anti-freeze liquid for non-commercial use.
K600/3 as electronic flow meter shows on the display a partial total of 5 digits (h=11.5 mm) with floating point from 0.001 to 999.99 Total, not resettable to 8 digits (h=5 mm) from 1 to 99999999.MADE IN PIUSI RELIABILITY
The K600/3 flow meter features acetal resin oval gears for monitoring the dispensing of diesel and other special fluids compatible with the construction materials.
Equipped with an aluminum measuring chamber body, it consists of an integrated suction filter to ensure a safe dispensing without impurities, which otherwise could cause unpleasant blocks while dispensing.
HIGH PRECISION
The K600/3 flow meter for diesel and anti-freeze liquid ensures a monitoring accuracy of +/- 0.5% for a maximum flow rate of 100 l/min.
These features complete the K600/3 flow meter:
- Repeatability 0.2%
- Pressure drop < 0.5 bar at the max. flow rate.
K600/3 is divided into two products, different for the type of application.
The K600/3 flow meter has a display and is applicable to the transfer system, while the K600/3 Pulse has no display.
The latter is equipped with a connection wire up to 10 meters long to which you can connect the flow meter remotely.
Its installation is ideal in case you want to monitor the quantity dispensed not directly on the system, but from the office.
