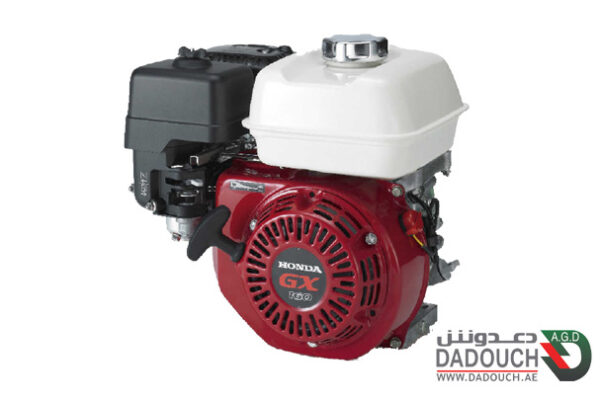

Description
- ENGINE TYPE4-stroke single cylinder
OHV petrol engine
25° inclined cylinder
horizontal shaft - CYLINDER SLEEVE TYPE Cast iron sleeve
- BORE X STROKE77 x 58 mm
- DISPLACEMENT270 cm³
- COMPRESSION RATIO8.5 : 1
- NET POWER6.3 kW ( 8.4 HP ) / 3600 rpm
- CONT. RATED POWER4.6 kW ( 6.2 HP ) / 3000 rpm
- 5.1 kW ( 6.8 HP ) / 3600 rpm
- MAX. NET TORQUE19.1 Nm ( 1.94 kgfm ) / 2500 rpm
- IGNITION SYSTEM Digital CDI with variable ignition timing
- STARTERRecoil (el. start optional)
- FUEL TANK CAPACITY5.3 Liter
- FUEL CONS. AT CONT. RATED POWER2.4 L/h – 3600 rpm
- ENGINE OIL CAPACITY1.1 Liter
- DIMENSIONS (L X W X H)381 x 428 x 422 mm
- DRY WEIGHT25.8 kg
