Description

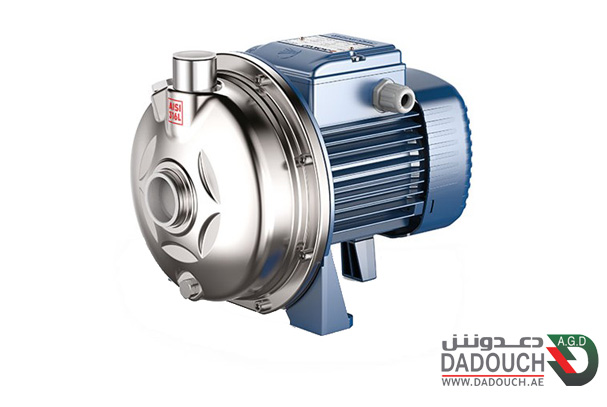

PEDROLLO CP-ST المواصفات الفنية لمضخة الماء ذات طرد مركزي
Suitable for use with clean water and with liquids that are not chemically aggressive towards the materials from which the pump is made.
Because of its design features these centrifugal pumps are recommended for use in domestic, agricultural and industrial applications.
All the components in contact with the pumped liquid are in stainless steel AISI 304 or AISI 316L thus guaranteeing complete hygiene and maximum resistance against corrosion.
The pump should be installed in an enclosed environment or sheltered from inclement weather.
Liquid type: Clean Water
Uses: domestic, industrial, agriculture
Applications: irrigation pumps, cooling systems, air conditioning systems, washing systems, water supply systems, water treatment plants
typology: surface
Family: centrifugal
Performance Range:
- Flow rate up to 270 l/min (16,2 m³/h)
- Head up to 45 m
Application Limit:
- Temperature of the liquid from -10 °C to +90 °C
- Ambient Temperature to +40 °C
- Mano-metric suction lift up to 7 m
- Max. working pressure:
6 bar for CP 100-130-132-150-158 ST4
CP 100-130-132-150-158 ST6
8 bar for CP 170-170M ST4
CP 170-170M ST6
CP 180-190-200 ST4
CP 180-190-200 ST6
- Continuous service S1
