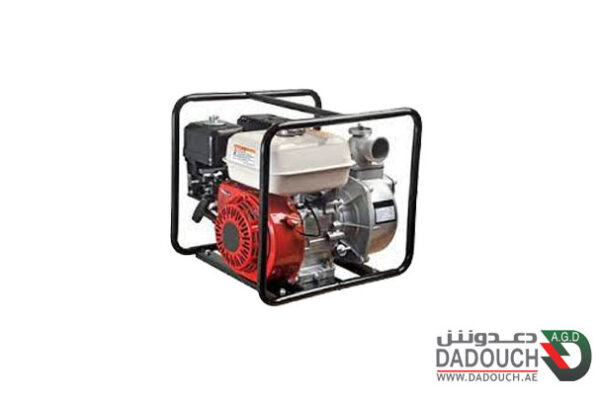

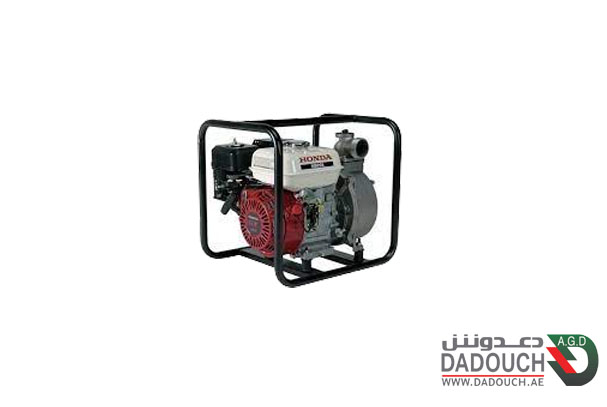

Water Pump 4 Horsepower 2 Inch HONDA GX120

Description

• 164 gal./min. capacity
• Durable silicon carbide mechanical seal
• Cast iron volute and impeller
• • Engine: GX120
  • Displacement: 118cc
  • Bore and stroke: 2.4″ x 1.7″
  • Compression Ratio8.5:1
  • Oil Alert: Std
  • Pump Type: Centrifugal, Self-priming
  • Volute Rigid: Mounted Cast Iron
  • Impeller4 Vane Cast Iron
  • Mechanical Seal (Pump case / impeller)Silicon Carbide/Silicon Carbide
  • Priming time110 sec @ 16.4 ft.
  • Drive System: Direct
  • Discharge capacity164 gal/min
  • Suction port diameter2″ NPT
  • Discharge port diameter2″ NPT
  • Total head lift: 105 ft.
  • Suction head lift25 ft.
  • Maximum pressure45 psi
  • Solids handling: N/A
  • Dimensions (LxWxH): 19.3″ x 14.4″ x 16.5″
  • Dry weight: 44 lb.
  • Fuel Capacity0.53 gal
  • Run Time @ Max Discharge1.7 hr
  • Strainer Part #78325-YG3-000
