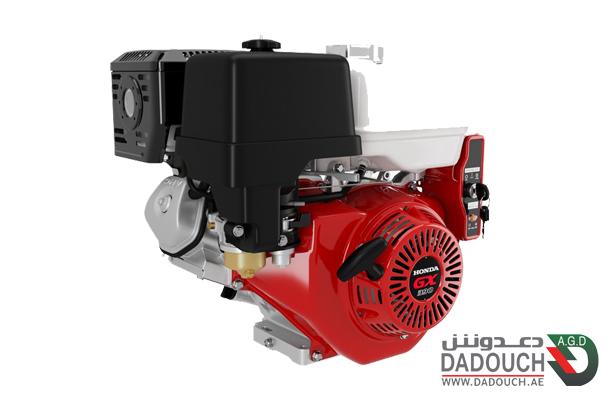

Description
- The OHV design enhances combustion efficiency
- A variable ignition timing (digital CDI) results in high power output, reduced fuel consumption and excellent exhaust emissions performance.
- Easy starting with an automatic decompression system and an easy-to-grip soft recoil starter handle
- High quality materials and purpose-built components ensure reliable long-term use
- Meets world’s most stringent environmental legislation
- Guaranteed low fuel and oil consumption
- Reduced vibration and noise level
-
ENGINE TYPE4-stroke single cylinder
OHV petrol engine
25° inclined cylinder
horizontal shaft -
CYLINDER SLEEVE TYPECast iron sleeve
-
BORE X STROKE88 x 64 mm
-
DISPLACEMENT389 cm³
-
COMPRESSION RATIO8.2 : 1
-
NET POWER8.7 kW ( 11.7 HP ) / 3600 rpm
-
CONT. RATED POWER6.4 kW ( 8.6 HP ) / 3000 rpm
-
7.0 kW ( 9.4 HP ) / 3600 rpm
-
MAX. NET TORQUE26.5 Nm ( 2.7 kgfm ) / 2500 rpm
-
IGNITION SYSTEMDigital CDI with variable ignition timing
-
STARTERRecoil (el. start optional)
-
FUEL TANK CAPACITY6.1 Liter
-
FUEL CONS. AT CONT. RATED POWER3.5 L/h – 3600 rpm
-
ENGINE OIL CAPACITY1.1 Liter
-
DIMENSIONS (L X W X H)406 x 460 x 448 mm
-
DRY WEIGHT31.7 kg
