Description

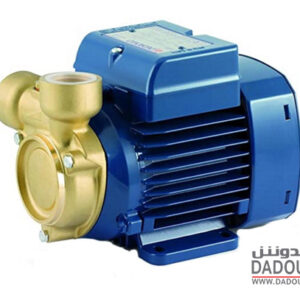

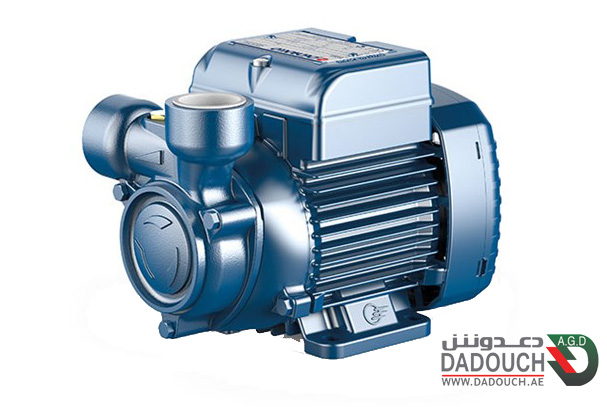

PEDROLLO PQ المواصفات الفنية لمضخة ماء ذات مروحة محيطية
The hydraulic characteristics of these pumps, coupled with their compactness, makes them suitable for use in both domestic and industrial applications.
Suitable for use with clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials from which the pump is made.
The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
Liquid type: Clean Water
Uses: domestic
Applications: water supply systems, air conditioning systems, washing systems, pressure systems, cooling systems, ironing system, irrigation pumps
typology: surface
Family: peripheral
Performance Range:
- Flow rate up to 90 l/min (5,4 m³/h)
- Head up to 100 m
Application Limit:
- Temperature of the liquid from -10 °C to +90 °C
- Ambient temperature between -10 °C and +40 °C (+50 °C for PQ 60)
- Mano metric suction lift up to 8 m
- Max. working pressure:
– 6 bar for PQ 60, PQ 65
– 7 bar for PQ 70, PQ 80
– 10 bar for PQ 90, PQ 100, PQ 200, PQ 300
- Continuous service S1
