Description

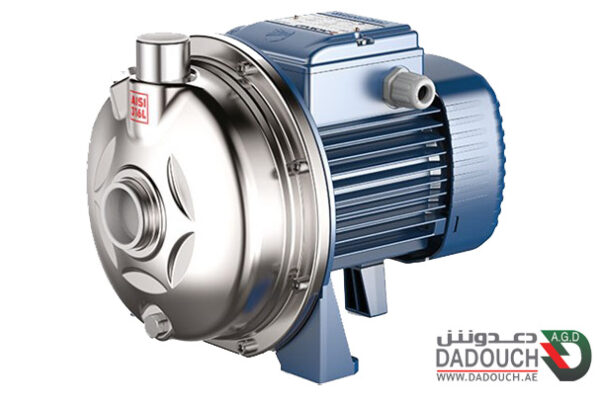

Pedrollo Al-Red مضخة ماء بطرد مركزي مصنعة من الستانلس ستيل
As a result of their construction characteristics, these centrifugal pumps are suitable for use in the domestic, agricultural and industrial sectors.
All of the components in contact with the pumped liquid are constructed from stainless steel AISI 304, thus guaranteeing complete hygiene and maximum resistance against corrosion.
Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
Liquid type: Clean Water
Uses: domestic, industrial, agriculture
Applications: irrigation pumps, cooling systems, air conditioning systems, washing systems, water supply systems, water treatment plants
typology: surface
Family: centrifugal
Performance Range:
- Flow rate up to 160 l/min (9,6 m³/h)
- Head up to 23 m
Application Limit:
- Temperature of the liquid from -10 °C to +90 °C
- Ambient Temperature da -10 °C to +40 °C
- Mano-metric suction lift up to 7 m
- Max. working pressure 4 bar
- Continuous service S1
