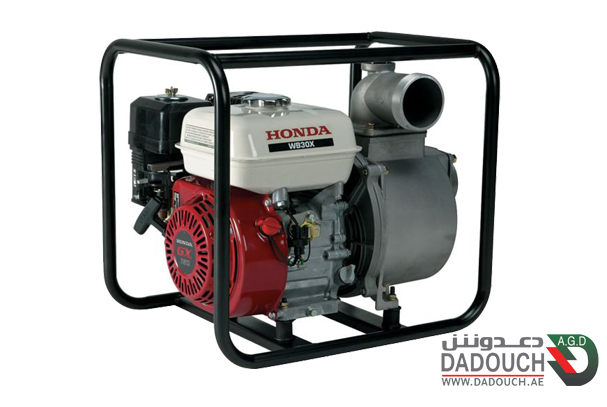

3-Inch Petrol Water Pump HONDA WB30

المواصفات الفنية والتقنية لمضخة ماء من شركة هوندا المتخصصة بصناعة المعدات الصناعية والمعدات الزراعية

• Engine: GX160
• Displacement: 163cc
• Bore and stroke: 2.7″ x 1.8″
• Compression Ratio: 9.0:1
• Oil Alert: Std
• Pump Type: Centrifugal, Self-priming
• Volute Rigid Mounted Cast Iron
• Impeller4 Vane Cast Iron
• Mechanical Seal (Pump case / impeller)Silicon Carbide/Silicon Carbide
• Priming time: 150 sec @16.4 ft.
• Drive system: Direct
• Discharge capacity: 290 gal/min
• Suction port diameter3″ NPT
• Discharge port diameter3″ NPT
• Total head lift85 ft.
• Suction head lift25 ft.
• Maximum pressure: 37 psi
• Solids handling N/A
• Dimensions (LxWxH): 20.1″x 15.2″ x 17.9″
• Dry weight 57 lb.
• Fuel Capacity0.82 gal
• Run Time @ Max Discharge1.9 hr
• Strainer Part #78325-YG4-000
• 290 gal./min. capacity
• Silicon carbide mechanical seal
• Cast iron volute and impeller
