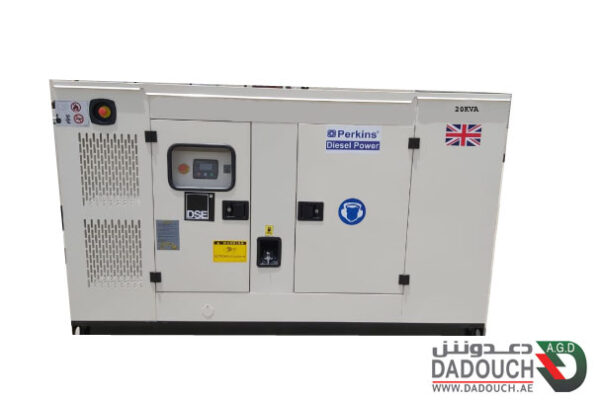

Big Electric Generator Perkins P20

Technical and technical specifications for a large diesel generator from Perkins

GENERATING SET MODEL (P20)

Output Ratings: 380-415 V, 3 ph, 50 Hz, 1500 rpm Prime
20 KVA
16 KW Standby
22 KVA
17.6 KW

Ratings at 0.8 Power Factor

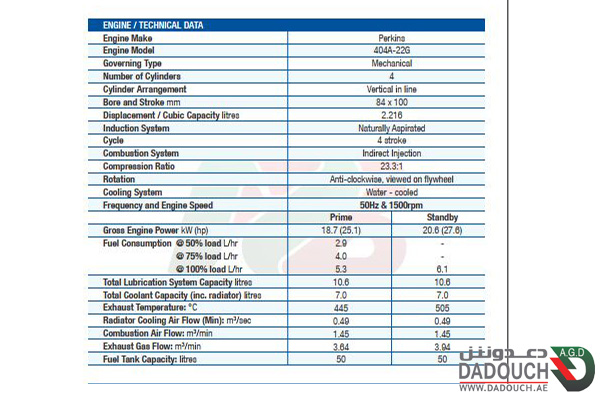

ENGINE / TECHNICAL DATA
  • Perkins Engine Make
  • 404A-22G Engine Model
  • Mechanical Governing Type
  • 4 Number of Cylinders
  • Vertical in line Cylinder Arrangement
  • 84 x 100 Bore and Stroke mm
  • 2.216 Displacement / Cubic Capacity liters
  • Naturally Aspirated Induction System
  • 4 stroke Cycle
  • Indirect Injection Combustion System
  • 23.3:1 Compression Ratio
  • Anti-clockwise, viewed on flywheel Rotation
  • Water – cooled Cooling System
  • Frequency and Engine Speed 50Hz & 1500rpm
  • Gross Engine Power kW (hp) 18.7 (25.1) 20.6 (27.6)
  • Fuel Consumption @ 50% load L/hr
    @ 75% load L/hr
    @ 100% load L/hr 2.9
    4.0
    5.3 – –
    6.1
  • Total Lubrication System Capacity liters 10.6 10.6
  • Total Coolant Capacity (inc. radiator) liters 7.0 7.0
  • Exhaust Temperature: °C 445 505
  • Radiator Cooling Air Flow (Min): m3/sec 0.49 0.49
  • Combustion Air Flow: m3/min 1.45 1.45
  • Exhaust Gas Flow: m3/min 3.64 3.94
  • Fuel Tank Capacity: liters 50 50
  • Prime Standby
CONTROL PANEL

Make Deep Sea
Model DSE6110

The DSE6110 is an Auto Start Control Module for single gen-set applications.

It includes a backlit LCD display which clearly shows the status of the engine all the times.

This module can either be programmed using the front panel or by using the DSE configuration suite PC software.

Metering and Alarm indications:

  • Generator frequency
  • Under speed, Over speed
  • Generator volts (L-L, L-N)
  • Generator current
  • Engine oil pressure
  • Engine coolant temperature
  • Fuel level (Warning or shutdown) – Optional
  • Hours run counter
  • Battery volts
  • Fail to start/stop
  • Emergency stop
  • Failed to reach loading voltage/frequency
  • Charge fail
  • Loss of magnetic pick-up signal – Optional
  • Low DC voltage
  • CAN diagnostics and CAN fail/error
STANDARD REFERENCE CONDITIONS

Some of the specifications are not standard on all Gen-set models.

Output ratings are presented at 25°C air inlet temperature, barometric pressure 100 kPa, relative humidity 30%. This generating set designed to operate at high ambient temperatures (up to 55°C), humidity (up to 99%) and higher altitudes.

De-ration may apply, please consult your dealer for specific site ratings.

AVAILABLE OPTIONS & ACCESSORIES

We offer a range of optional features and accessories to tailor our generating sets to meet your power needs.
OPTIONS ACCESSORIES

  • A variety of generating set control and synchronizing panels
  • Genuine spare parts
  • Additional protection alarms and shutdowns
  • Load banks
  • Water fuel seperator
  • Auxiliary fuel tanks
  • Water jacket heater
  • Manual & automatic transfer
  • Battery charger switches
