Description

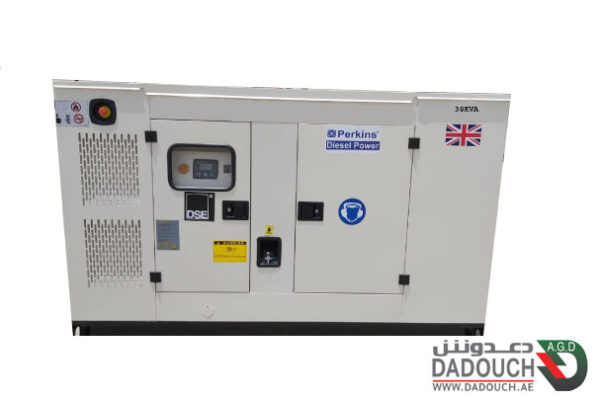

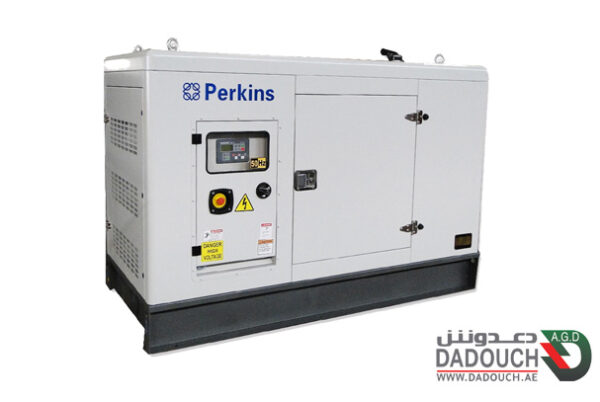

Big Electric Generator Perkins P30

Technical and technical specifications for a large diesel generator from Perkins

GENERATING SET MODEL (P30)

Output Ratings
380-415 V, 3 ph, 50 Hz, 1500 rpm Prime
30 KVA
24 KW Standby
33 KVA
26.4 KW

Output Ratings
230 V, 1 ph, 50 Hz, 1500 rpm Prime
19 KVA
15 KW Standby
21 KVA
17 KW

ENGINE / TECHNICAL DATA
  • Engine Make Perkins
  • Engine Model 1103A-33G
  • Governing Type Mechanical
  • Number of Cylinders 3
  • Cylinder Arrangement Vertical in line
  • Bore and Stroke mm 105 x 127
  • Displacement / Cubic Capacity liters 3.3
  • Induction System Naturally Aspirated
  • Cycle 4 stroke
  • Combustion System Direct Injection
  • Compression Ratio 19.25:1
  • Rotation Anti-clockwise (viewed from flywheel)
  • Cooling System Water – cooled
  • Frequency and Engine Speed 50Hz & 1500rpm
  • Gross Engine Power kW (hp) 28.2 (37.8) 31.0 (41.6)
  • Fuel Consumption @ 50% load L/hr
    @ 75% load L/hr
    @ 100% load L/hr 3.9
    5.4
    7.1 – –
    7.9
  • Total Lubrication System Capacity liters 8.3 8.3
  • Total Coolant Capacity (inc. radiator) liters 10.2 10.2
  • Exhaust Temperature: °C 500 520
  • Radiator Cooling Air Flow (Min): m3/sec 0.88 0.88
  • Combustion Air Flow: m3/min 2.16 2.15
  • Exhaust Gas Flow: m3/min 5.7 5.8
  • Fuel Tank Capacity: liters 85 85
  • Prime Standby

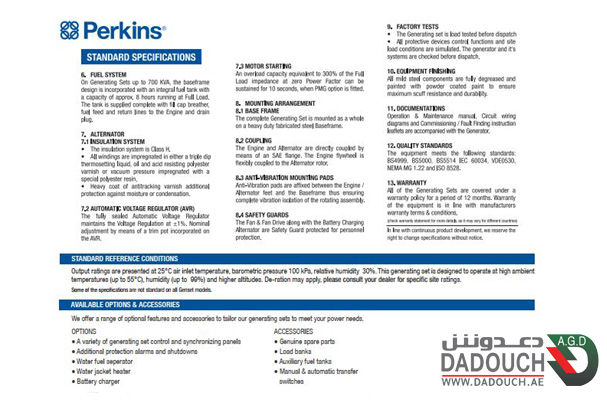

STANDARD SPECIFICATIONS
ENGINE

Perkins four stroke heavy duty high performance industrial type diesel engine.

ENGINE FILTRATION SYSTEM
• Cartridge type dry air filter.
• Cartridge type fuel filter.
• Full flow lube oil filter.

All filters have replaceable elements.

COOLING RADIATOR

Radiator and cooling fan, complete with safest guards, designed to cool the engine at high ambient temperatures (consult your dealer for de-ration factor

EXHAUST SYSTEM

Heavy duty Industrial Exhaust Silencer
Silencer noise reduction level 16 (dB)
8.0 @ 50 Hz Maximum allowable back pressure (kPa)
10.0 @ 60 Hz

5.CIRCUIT BREAKER TYPE

ABB 3 pole MCB. (4 pole is optional)

CONTROL PANEL

Make Deep Sea
Model DSE6110

The DSE6110 is an Auto Start Control Module for single gen-set applications. It includes a backlit LCD display which clearly shows the status of the engine all the times.

This module can either be programmed using the front panel or by using the DSE configuration suite PC software.

Metering and Alarm indications:

  • Generator frequency
  • Underspeed, Overspeed
  • Generator volts (L-L, L-N)
  • Generator current
  • Engine oil pressure
  • Engine coolant temperature
  • Fuel level (Warning or shutdown) – Optional
  • Hours run counter
  • Battery volts
  • Fail to start/stop
  • Emergency stop
  • Failed to reach loading voltage/frequency
  • Charge fail
  • Loss of magnetic pick-up signal – Optional
  • Low DC voltage
  • CAN diagnostics and CAN fail/error
STANDARD REFERENCE CONDITIONS

Some of the specifications are not standard on all Gen-set models.

Output ratings are presented at 25°C air inlet temperature, barometric pressure 100 KPA, relative humidity 30%.

This generating set is designed to operate at high ambient temperatures (up to 55°C), humidity (up to 99%) and higher altitudes.

De-ration may apply, please consult your dealer for specific site ratings.

AVAILABLE OPTIONS & ACCESSORIES

We offer a range of optional features and accessories to tailor our generating sets to meet your power needs.

OPTIONS ACCESSORIES

  • A variety of generating set control and synchronizing panels
  • Genuine spare parts
  • Additional protection alarms and shutdowns
  • Load banks
  • Water fuel separator
  • Auxiliary fuel tanks
  • Water jacket heater
  • Manual & automatic transfer
  • Battery charger switches
