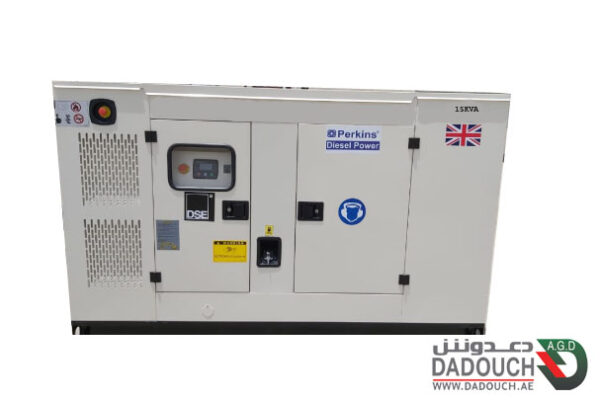

Big Electric Generator Perkins P15

Technical and technical specifications for a large diesel generator from Perkins

GENERATING SET MODEL (JP15)

Output Ratings
380-415 V, 3 ph, 50 Hz, 1500 rpm Prime
15 KVA
12 KW Standby
16.5 KVA
13.2 KW

230V, 1 ph, 50 Hz, 1500 rpm 10.5 KVA
8.5 KW 11.5 KVA
9 KW

ENGINE / TECHNICAL DATA

Perkins Engine Make
403A-15G2 Engine Model
Mechanical Governing Type
3 Number of Cylinders
Vertical in line Cylinder Arrangement
84 x 90 Bore and Stroke mm
1.496 Displacement / Cubic Capacity liters
Naturally Aspirated Induction System
4 stroke Cycle
Indirect Injection Combustion System
22.5:1 Compression Ratio
Anti-clockwise, viewed on flywheel Rotation
Water – cooled Cooling System
Frequency and Engine Speed 50Hz & 1500rpm
Gross Engine Power kW (hp) 14 (18) 15.4 (20)
Fuel Consumption @ 50% load L/hr
@ 75% load L/hr
@ 100% load L/hr 2.2
3.1
4.3 – –
5.0
Total Lubrication System Capacity liters 6.0 6.0
Total Coolant Capacity (inc. radiator) liters 6.0 6.0
Exhaust Temperature: °C 470 580
Radiator Cooling Air Flow (Min): m3/sec 0.42 0.42
Combustion Air Flow: m3/min 1.0 1.0
Exhaust Gas Flow: m3/min 2.2 2.2
Fuel Tank Capacity: liters 51 51
Prime Standby

CONTROL PANEL

Make Deep Sea
Model DSE6110

The DSE6110 is an Auto Start Control Module for single gen-set applications. It includes a backlit LCD display which clearly shows the status of the engine all the times.

This module can either be programmed using the front panel or by using the DSE configuration suite PC software.

Metering and Alarm indications:

• Generator frequency
• Under speed, Over speed
• Generator volts (L-L, L-N)
• Generator current
• Engine oil pressure
• Engine coolant temperature
• Fuel level (Warning or shutdown) – Optional
• Hours run counter
• Battery volts
• Fail to start/stop
• Emergency stop
• Failed to reach loading voltage/frequency
• Charge fail
• Loss of magnetic pick-up signal – Optional
• Low DC voltage
• CAN diagnostics and CAN fail/error

STANDARD REFERENCE CONDITIONS

Some of the specifications are not standard on all Gen-set models

Output ratings are presented at 25°C air inlet temperature, barometric pressure 100 kPa, relative humidity 30%.

This generating set is designed to operate at high ambient temperatures (up to 55°C), humidity (up to 99%) and higher altitudes.

De-ration may apply, please consult your dealer for specific site ratings.

AVAILABLE OPTIONS & ACCESSORIES

We offer a range of optional features and accessories to tailor our generating sets to meet your power needs.

OPTIONS ACCESSORIES
  • A variety of generating set control and synchronizing panels
  • Genuine spare parts
  • Additional protection alarms and shutdowns
  • Load banks
  • Water fuel seperator
  • Auxiliary fuel tanks
  • Water jacket heater
  • Manual & automatic transfer
  • Battery charger switches
