Description
مضخة قاذورات أو بتسمية أخرى فرامة مياه عادمه تستخدم بشكل رئيسي للمياه العادمة

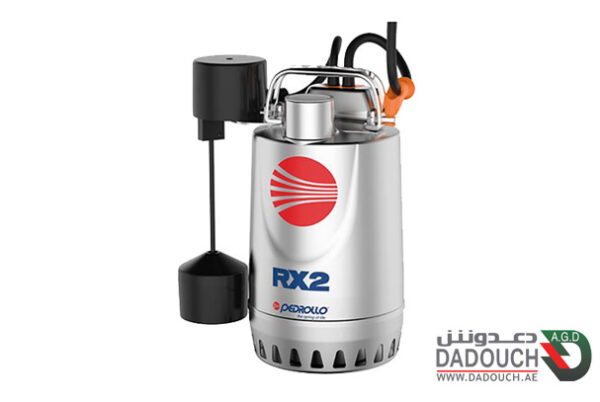

The RX series pumps are suitable for use with clear water that does not contain abrasive particles.
As a result of the design solutions that have been adopted, such as the complete cooling of the motor and the shaft with double seal, these pumps are easy to use and reliable.
They are suitable for use in fixed installations and applications such as draining small flooded areas (rooms, cellars, garages) in the event of an emergency, for the disposal of waste water in the home (from dishwashers, washing machines) and for emptying drainage traps.
Liquid type: Clean Water
Uses: domestic, civil
Applications: drainage, emptying tanks
typology: submersible
Family: submersible pumps
Performance Range:
- Flow rate up to 300 l/min (18,0 m³/h)
- Head up to 12 m
Application Limit:
- Temperature of the liquid to +50 °C
- 10 m maximum immersion depth
(with a sufficiently long power cable)
- Passage of suspended solids up to Ø 10 mm
- Suction level:
– 14 mm above ground level for RX 1-2-3
– 25 mm above ground level for RX 4-5
- Continuous service S1
