Description
مضخة ماء غاطسة للمياه العادمه بدرللو تستخدم لتصريف القاذورات والأوساخ إيطالية المنشأ

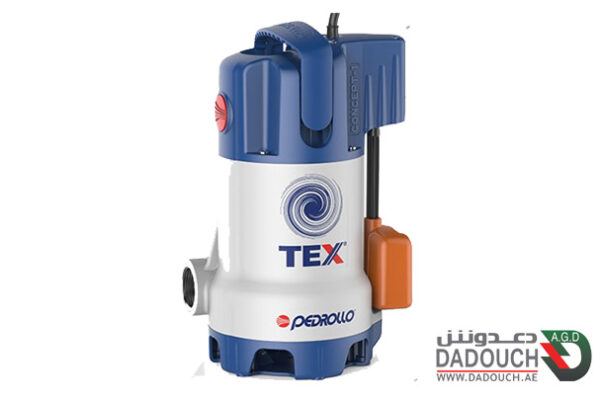

The TEX pump is suitable for use with dirty water that is not chemically aggressive towards the materials from which the pump is made.
Because of the design solutions that have been adopted, such as the complete cooling of the motor and the shaft with double seal, these pumps are easy to use and reliable.
They are suitable for use in applications such as clearing dirty water, emptying tanks, discharging domestic waste water, and for emptying collection traps containing suspended solids up to a maximum of Ø 30 mm.
Liquid type: Dirty water
Uses: domestic
Applications: drainage, dirty water – slightly solid particles, emptying tanks
typology: submersible
Family: submersible pumps
Performance Range:
- Flow rate up to 240 l/min (14,4 m³/h)
- Head up to 10 m
Application Limit:
- Temperature of the liquid to +40 °C
- 5 m maximum immersion depth
(with a sufficiently long power cable)
- Passage of suspended solids up to Ø 30 mm
- Suction down to 35 mm above ground level
- Continuous service S1
