Description

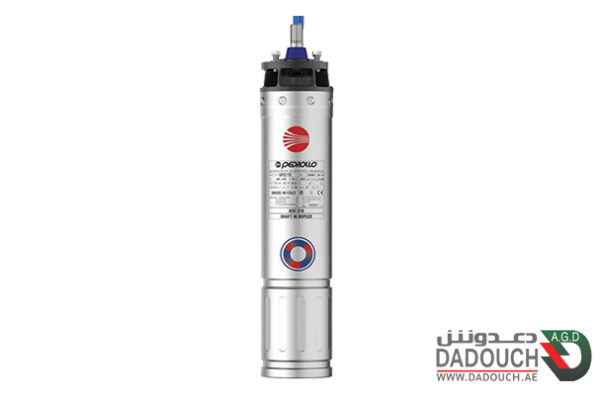

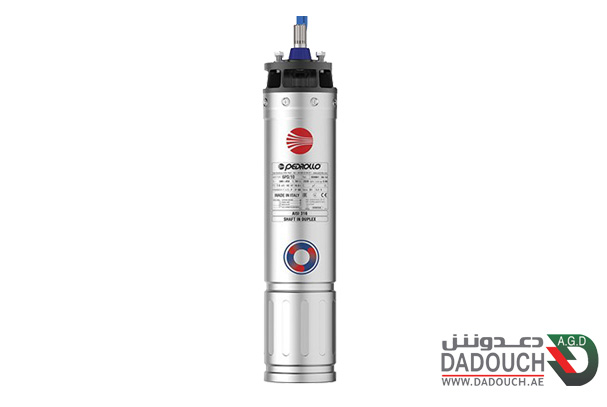

PEDROLLO 6PD المواصفات الفنية لمصخة الماء الغاطسة اللإيطالية
ELECTRIC MOTOR
- 2 pole electric motor, 50 Hz (n ~ 2900 min-1)
- Three-phase voltage 400 V
- Insulation: class F
- Protection: IP 68
CONSTRUCTION
- Oil filled rewindable motors (non-toxic oil for use with food)
- Jacket: AISI 316 stainless steel
- Shaft: “DUPLEX” stainless steel
- Flange coupling dimensions in compliance with NEMA standards.
- Complete with power cable of the following length:
– 3 m powers up to 15 kW
– 4 m powers from 18.5 to 37 kW.
Liquid type: Clean Water
Uses: civil, industrial, agriculture
Applications: water supply systems, fire-fighting sets, pressure systems, irrigation pumps
typology: submersible
Family: motors -4″ – 6″
Application Limit:
- Temperature of the liquid to +35 °C
- 200 m immersion limit
- Starts/hour: 30 at regular intervals
- Minimum flow rate for motor cooling 10 cm/s
- Continuous service S1
