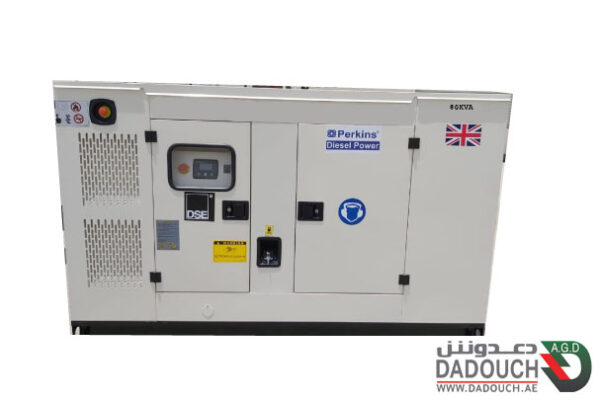

Big Electric Generator Perkins P80 for Sale in Dubai, UAE
Technical and technical specifications for a large diesel generator from Perkins
GENERATING SET MODEL (P80)
| Output Ratings 380-415 V, 3 ph, 50 Hz, 1500 rpm |
Prime 60 KVA 48 KW |
Standby 66 KVA 52.8 KW |
| Output Ratings 230 V, 1 ph, 50 Hz, 1500 rpm |
Prime 36 KVA 29 KW |
Standby 39.5 KVA 31.5 KW |
ENGINE / TECHNICAL DATA
| Engine Make | Perkins | |
| Engine Model | 1103A-33TG2 | |
| Governing Type | Mechanical | |
| Number of Cylinders | 3 | |
| Cylinder Arrangement | Vertical in line | |
| Bore and Stroke mm | 105 x 127 | |
| Displacement / Cubic Capacity litres | 3.3 | |
| Induction System | Turbocharged | |
| Cycle | 4 stroke | |
| Combustion System | Direct Injection | |
| Compression Ratio | 17.25:1 | |
| Rotation | Anti-clockwise, viewed from flywheel | |
| Cooling System | Water – cooled | |
| Frequency and Engine Speed | 50Hz & 1500rpm | |
| Gross Engine Power kW (hp) | 55 (73.8) | 60.5 (81.1 |
| Fuel Consumption @ 50% load L/hr @ 75% load L/hr @ 100% load L/hr |
7.2 10.4 13.9 |
– – 15.4 |
| Total Lubrication System Capacity litres | 8.3 | 8.3 |
| Total Coolant Capacity (inc. radiator) litres | 10.2 | 10.2 |
| Exhaust Temperature: °C | 557 | 571 |
| Radiator Cooling Air Flow (Min): m3/sec | 1.48 | 1.48 |
| Combustion Air Flow: m3/min | 3.8 | 3.9 |
| Exhaust Gas Flow: m3/min | 10.1 | 10.4 |
| Fuel Tank Capacity: litres | 85 | 85 |
| Prime | Standby |
STANDARD SPECIFICATIONS
- ENGINE
Perkins four stroke heavy duty high performance
industrial type diesel engine. - ENGINE FILTRATION SYSTEM
• Cartridge type dry air filter.
• Cartridge type fuel filter.
• Full flow lube oil filter.
All filters have replaceable elements. - COOLING RADIATOR
Radiator and cooling fan, complete with safety
guards, designed to cool the engine at high ambient
temperatures (consult your dealer for de-ration factors) - EXHAUST SYSTEM
Heavy duty Industrial Exhaust Silencer
| Silencer noise reduction level | 14 (dB) |
| 10.0 @ 50 Hz | Maximum allowable back pressure (kPa) |
| 15.0 @ 60 Hz |
5. CIRCUIT BREAKER TYPE
ABB 3 pole MCB. (4 pole is optional)
CONTROL PANEL
| Make | Deep Sea |
| Model | DSE6110 |
The DSE6110 is an Auto Start Control Module for single gen-set applications.
It includes a backlit LCD display which clearly shows the status of the engine all the times.
This module can either be programmed using the front panel or by using the DSE Configuration suite PC software.
Metering and Alarm indications:
- Generator frequency
- Under-speed, Over-speed
- Generator volts (L-L, L-N)
- Generator current
- Engine oil pressure
- Engine coolant temperature
- Fuel level (Warning or shutdown) – Optional
- Hours run counter
- Battery volts
- Fail to start/stop
- Emergency stop
- Failed to reach loading voltage/frequency
- Charge fail
- Loss of magnetic pick-up signal – Optional
- Low DC voltage
- CAN diagnostics and CAN fail/error
STANDARD REFERENCE CONDITIONS
Some of the specifications are not standard on all Gen-set models.
Output ratings are presented at 25°C air inlet temperature, barometric pressure 100 KPA, relative humidity 30%.
This generating set is designed to operate at high ambient temperatures (up to 55°C), humidity (up to 99%) and higher altitudes.
De-ration may apply, please consult your dealer for specific site ratings.
AVAILABLE OPTIONS & ACCESSORIES
We offer a range of optional features and accessories to tailor our generating sets to meet your power needs.
OPTIONS ACCESSORIES
- A variety of generating set control and synchronizing panels
- Genuine spare parts
- Additional protection alarms and shutdowns
- Load banks
- Water fuel separator
- Auxiliary fuel tanks
- Water jacket heater
- Manual & automatic transfer
- Battery charger switches
